大功率冷光源
产品类别:UST

产品特点1.采用进口高亮度LED,发光强衰减慢;
           2.采用PWM及恒流控制;
           3.散热片加高转速风扇高效散热,使用寿命长。

应用领域:1.医疗及半导体设备;
           2.工业照明和显微镜操作;
           3.直接替代卤素灯。

型号说明



选型指南



型号 光纤接口尺寸 外型尺寸(mm) 输出功率 相当于卤素灯 颜色 规格书下载
UST-SUP-100 12-16mm 153*141*71.5 10W 100W R,G,B,W,NW 点击下载
UST-SUP-150 12-16mm 153*141*71.5 15W 150W R,G,B,W,NW
UST-SUP-200 12-16mm 153*141*71.5 20W 200W R,G,B,W,NW

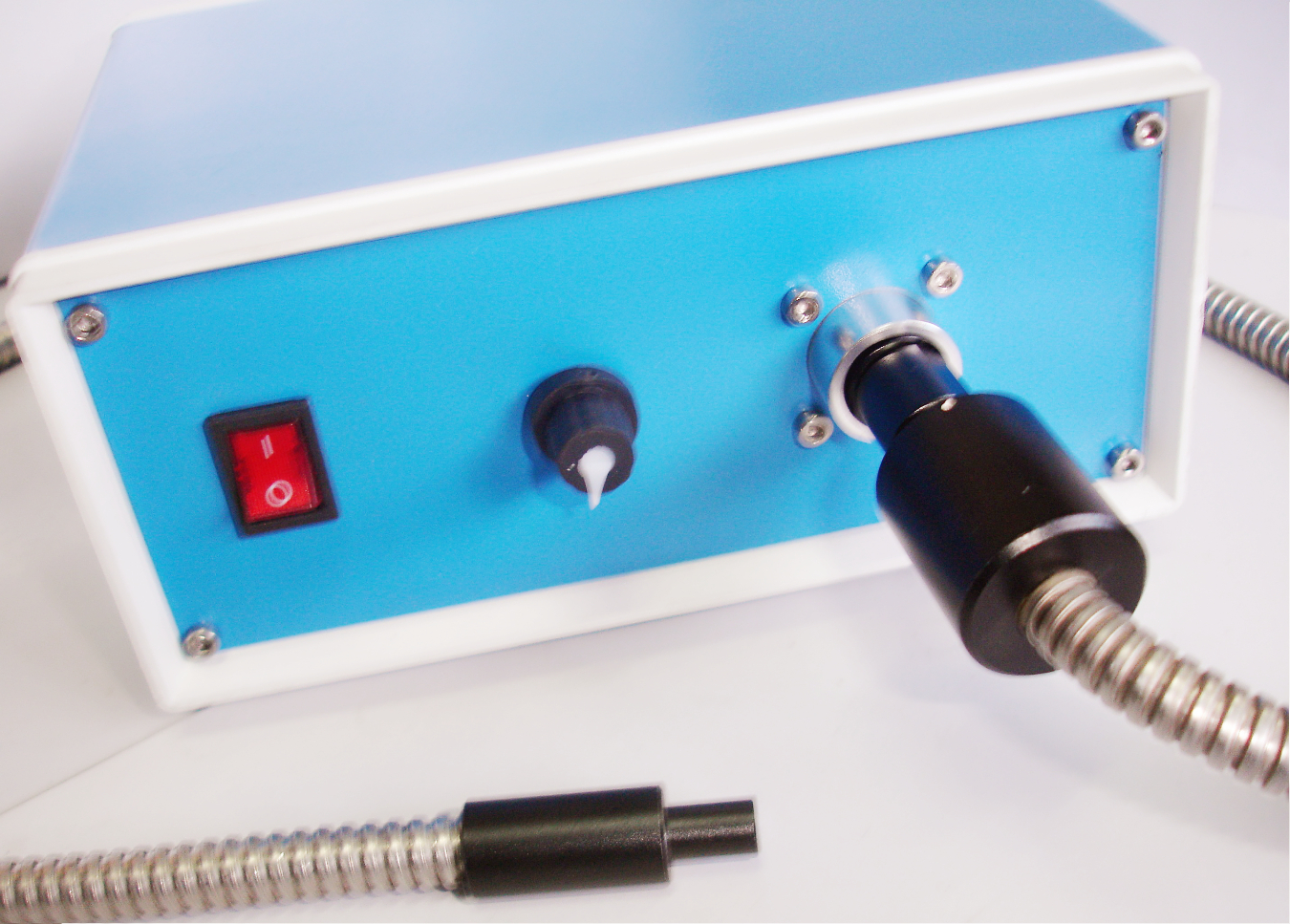

图片展示



产品参数

Product features: imported high brightness LED light emitting strong, slow attenuation;
Using PWM and constant current control;
High speed fan heat sink of high heat, long service life.
Applications: medical and semiconductor equipment;
Industrial Light & operating microscope;
Direct substitution of a halogen lamp.

Selection guide:

光源型号 相当于卤素灯 外壳尺寸(mm) 光纤接口 控制方式 可选颜色 输入电压 输出功率 规格书下载
UST-SUPLED-100 100W 150*141*70 Φ16mm 手动可调 红/蓝/正白/暖白 100~240V 10W 点击查看
UST-SUPLED-150 150W 150*141*70 Φ16mm 手动可调 红/蓝/正白/暖白 100~240V 15W 点击查看
UST-SUPLED-200 200W 150*141*70 Φ16mm 手动可调 红/蓝/正白/暖白 100~240V 20W 点击查看

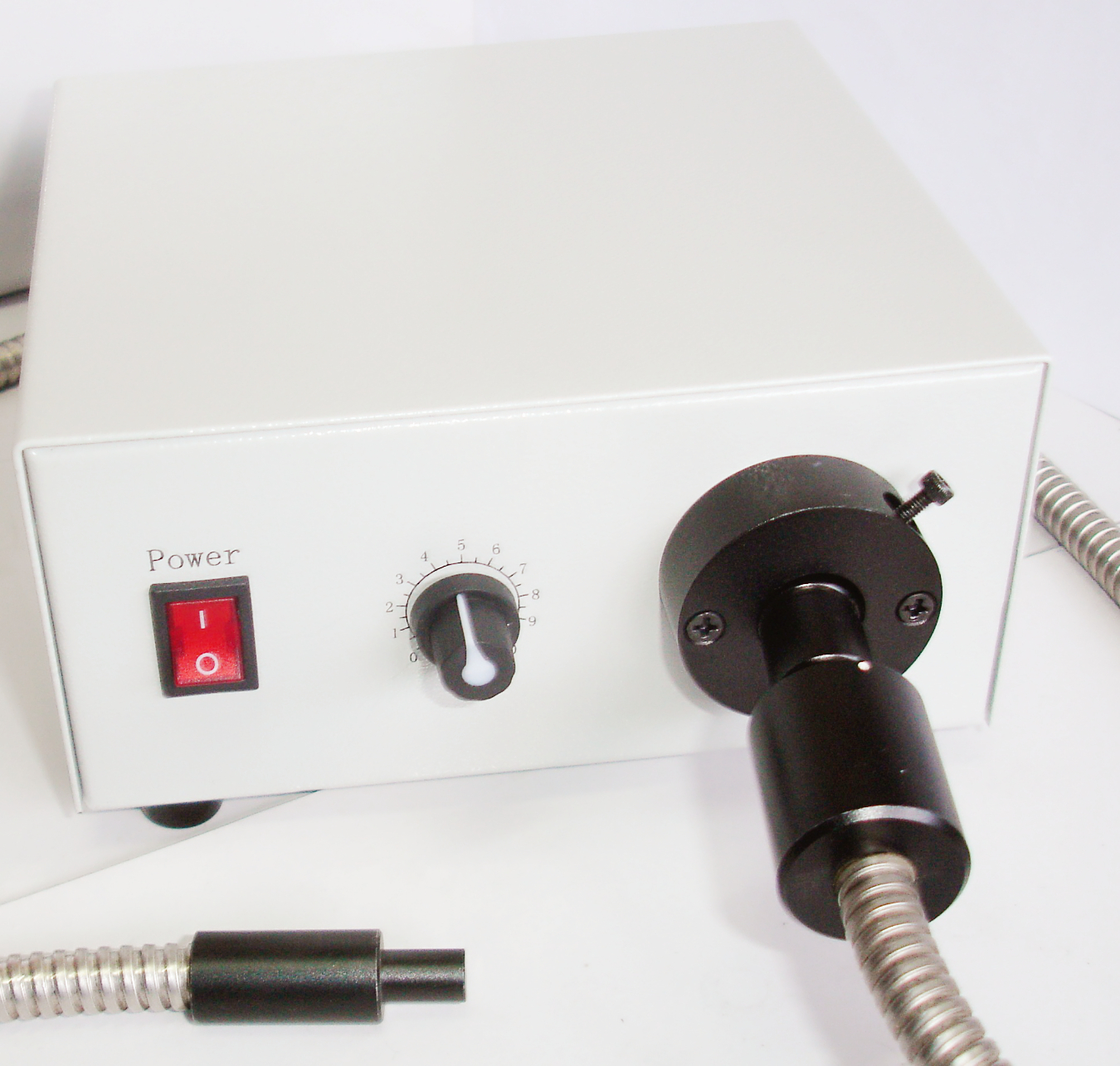

The picture shows:
